JMAZ JP2012
(JMAZ Electro Par W7 6Pack with Charging Road Case)
Battery-Powered LED PAR Light Kit
JMAZ Electro Par W7 6Pack with Charging Road Case is a complete battery-powered outdoor LED PAR lighting package designed for DJs, event professionals, production companies, rental houses, houses of worship, and entertainment venues. With six RGB+Lime Electro Par W7 fixtures, CRMX wireless DMX, IP65-style power connectivity, included 20° diffusers, IR remotes, and a professional charging road case, this kit delivers flexible wireless lighting with efficient charging, storage, and transport.
JMAZ Electro Par W7 6Pack with Charging Road Case Competitive Differences
- Complete wireless lighting kit includes six Electro Par W7 fixtures and a professional charging road case
- Integrated charging case allows all six fixtures to recharge simultaneously without removing them from the case
- 84W RGB+Lime LED engine per fixture provides vibrant color mixing with CTO control from 2300K to 8500K
- CRMX by LumenRadio wireless DMX, IR remote control, standalone color mixing, and multiple DMX modes support flexible operation
- Road case storage keeps fixtures protected, organized, and ready for faster deployment between events
JMAZ Electro Par W7 6Pack with Charging Road Case Description
The JMAZ Electro Par W7 6Pack with Charging Road Case is built for lighting professionals who need a reliable, portable, and easy-to-manage wireless PAR package. Each Electro Par W7 fixture uses 7 x 12W RGB+Lime LEDs for an 84W light engine, delivering saturated color output, adjustable white tones, and flexible beam control for uplighting, wall washing, stage enhancement, décor lighting, and architectural applications.
The included charging road case simplifies event preparation by storing, protecting, transporting, and charging all six fixtures in one organized system. This is especially useful for DJs, rental houses, production companies, and venues that need fast turnaround times and consistent fixture readiness between events.
For control, the Electro Par W7 supports CRMX by LumenRadio wireless DMX, IR remote operation, standalone color mixing, preset color temperatures, preset color programs, auto/fade programs, and multiple DMX personality modes. The OLED graphical display offers clear menu access, while electronic dimming, strobe, fading and jumping macros, and favorite color customization provide creative flexibility on-site.
Designed for professional mobile and production environments, each fixture features a die-cast aluminum and steel structure, fanless operation, Powercon IP65 True1 power connectivity, and battery operation for cable-free placement. With up to 14 hours of battery life, up to 40 hours in battery saving mode, and 4.5-hour charging, the JMAZ Electro Par W7 6Pack is a dependable solution for wireless lighting applications.
Electro Par W7 6Pack Features
- Complete wireless LED PAR kit with six Electro Par W7 fixtures and charging road case
- Integrated charging system charges all six fixtures while stored in the case
- 84W LED engine per fixture using 7 x 12W RGB+Lime LEDs
- RGBL color mixing with 8-bit and 16-bit control
- CTO control from 2300K to 8500K
- 10° advanced optics beam angle
- 20° diffuser included for wider wash coverage
- Up to 14 hours of battery life
- Up to 40 hours in battery saving mode
- 4.5-hour charging time
- Selectable battery saving modes from 20% to 100%
- 73 preset color programs
- 72 auto/fade built-in programs
- Standalone color mixing
- Electronic dimmer with 4 dimming modes
- Fading and jumping macro effects
- Electronic shutter and strobe effects
- Strobe rate up to 25 Hz
- Four favorite color customizations triggered by DMX or IR remote
- CRMX by LumenRadio wireless DMX
- IR remote control operation
- HSV, HSI, 3, 4, 6, 11, and 16-channel DMX modes
- OLED graphical display
- Die-cast aluminum and steel structure
- Black external finish
- Powercon IP65 True1 power cable included with each fixture
- Power linking supports daisy-chaining multiple fixtures on compatible circuits
Electro Par W7 6Pack Specifications
- Product Type: Battery-powered outdoor LED PAR light kit
- Included Fixtures: 6x Electro Par W7
- Charging Road Case: Included
- Light Source Per Fixture: 84W, 7 x 12W RGB+Lime LEDs
- LED Life Expectancy: 50,000 hours
- Color System: RGBL color mixing, 8/16 bit
- CTO Range: 2300K – 8500K
- Beam Angle: 10°
- Included Diffuser Angle: 20°
- Battery Life: Up to 14 hours
- Battery Saving Mode Runtime: Up to 40 hours
- Charging Time: 4.5 hours
- Battery Saving Modes: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- Preset Color Programs: 73
- Auto/Fade Built-In Programs: 72
- Dimmer: Electronic
- Dimming Modes: 4
- Shutter/Strobe: Electronic
- Strobe Rate: 0–25 Hz
- Control Protocols: Wireless DMX, IR remote
- Wireless DMX: CRMX by LumenRadio
- DMX Personalities: HSV, HSI, 3, 4, 6, 11, and 16-channel modes
- Display: OLED graphical display
- Fixture Construction: Die-cast aluminum and steel structure
- External Finish: Black
- Input Voltage: 100V – 240V AC, 50/60 Hz
- Power Consumption: 90W
- PWM: 1.5 kHz
- Battery Voltage: 25.9V, 3A
- Battery Capacity: 7800mAh, 202Wh
- Charger: 29.4V, 5.5A
- Rechargeable Battery Type: UL-listed lithium ion
- Power Linking at 110V / 20A Circuit: Up to 22 units
- Power Linking at 208V / 20A Circuit: Up to 40 units
- Power Linking at 230V / 20A Circuit: Up to 45 units
- Case Dimensions: 34.2 x 23.6 x 19.3 in
- Case Weight Without Lights: 64 lb (29 kg)
- Total Weight With Lights: 143 lb (64.8 kg)
- UPC: 618528600000

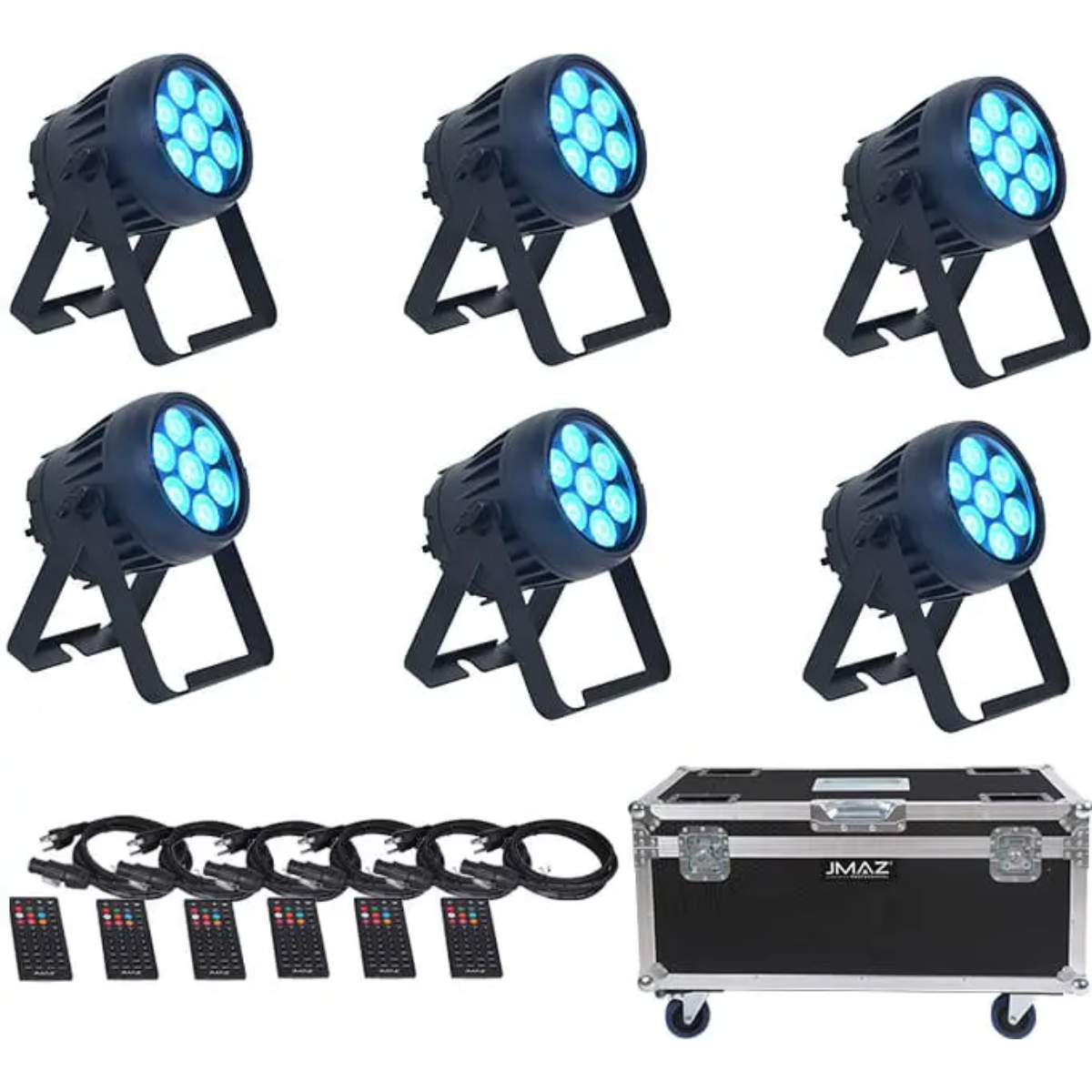

What's In The Box
- 1x Charging case
- 6x JMAZ Electro Par W7 fixtures
- 6x Powercon IP65 True1 power cables
- 6x IR remotes
- 6x 20° diffusers
- 1x Quick start guide
- 1x User manual
