JMAZ JP2013
(JMAZ Electro Panel W8 4Pack with Charging Road Case)
Battery-Powered LED Panel Light Kit
JMAZ Electro Panel W8 4Pack with Charging Road Case is a compact battery-powered outdoor LED panel lighting package designed for mobile entertainers, production companies, rental providers, houses of worship, corporate event teams, and temporary installation use. With four RGB+Lime Electro Panel W8 fixtures, CRMX wireless DMX, IP65-rated construction, included 40° diffusers, barn doors, IR remotes, and a charging road case, this kit delivers flexible wireless lighting with streamlined storage, charging, and transportation.
JMAZ Electro Panel W8 4Pack with Charging Road Case Competitive Differences
- All-in-one kit includes four Electro Panel W8 fixtures and a dedicated charging road case
- Simultaneous in-case charging keeps fixtures organized, protected, and ready for deployment
- 96W RGB+Lime LED engine per fixture delivers vibrant color mixing with CTO control from 2300K to 8500K
- CRMX by LumenRadio wireless DMX, IR remote control, and multiple DMX channel modes support flexible operation
- IP65-rated, fanless fixtures with die-cast aluminum and steel construction are built for outdoor event use
JMAZ Electro Panel W8 4Pack with Charging Road Case Description
The JMAZ Electro Panel W8 4Pack with Charging Road Case is designed for event professionals who need a compact wireless lighting package that is easy to transport, charge, store, and deploy. Each Electro Panel W8 fixture uses 8 x 12W RGB+Lime LEDs for a 96W light engine, giving users flexible color mixing, adjustable white tones, and reliable output for uplighting, wall washing, stage accents, décor lighting, and temporary event installations.
The included charging road case helps simplify event logistics by keeping all four fixtures organized and protected while allowing simultaneous in-case charging. This makes the package especially useful for rental inventories, mobile production crews, houses of worship, and corporate event teams that need fixtures ready for immediate use.
For control, the Electro Panel W8 supports CRMX by LumenRadio wireless DMX, IR remote operation, standalone color mixing, preset color temperatures, built-in programs, and multiple DMX personality modes. The OLED graphical display provides clear menu access, while electronic dimming, strobe, fading and jumping macros, and favorite color customization help adapt the fixtures to a wide range of show environments.
Built for professional indoor and outdoor use, the fixtures feature IP65-rated protection, fanless cooling, die-cast aluminum and steel construction, Seetronic Powercon IP65 True1 power input/output, and Seetronic 5-pin XLR data connections. With up to 16 hours of battery life, up to 40 hours in battery saving mode, and included 40° diffusers and barn doors, the JMAZ Electro Panel W8 4Pack is a practical lighting solution for portable and production use.
Electro Panel W8 4Pack Features
- Complete compact kit with four Electro Panel W8 fixtures and charging road case
- Integrated charging system charges all four fixtures while stored in the case
- 96W LED engine per fixture using 8 x 12W RGB+Lime LEDs
- RGBL color mixing with 8-bit and 16-bit control
- CTO control from 2300K to 8500K
- 20° advanced optics beam angle
- 40° diffuser included for wider wash coverage
- Up to 16 hours of battery life
- Up to 40 hours in battery saving mode
- 4.5-hour charging time
- Selectable battery saving modes from 20% to 100%
- 73 preset color programs
- 72 auto/fade built-in programs
- Standalone color mixing
- Electronic dimmer with 4 dimming modes
- Fading and jumping macro effects
- Electronic shutter and strobe effects
- Strobe rate up to 25 Hz
- Four favorite color customizations triggered by DMX or IR remote
- CRMX by LumenRadio wireless DMX
- IR remote control operation
- HSV, HSI, 3, 4, 6, 11, and 16-channel DMX modes
- OLED graphical display
- IP65-rated fixture design
- Fanless cooling for quiet operation
- Die-cast aluminum and steel structure
- Black external finish
- Seetronic Powercon IP65 True1 power input and output
- Seetronic 5-pin XLR input and output data connectors
- Power linking supports daisy-chaining multiple fixtures on compatible circuits
Electro Panel W8 4Pack Specifications
- Product Type: Battery-powered outdoor LED panel light kit
- SKU: JP2013
- Included Fixtures: 4x Electro Panel W8
- Charging Road Case: Included
- Light Source Per Fixture: 96W, 8 x 12W RGB+Lime LEDs
- LED Life Expectancy: 50,000 hours
- Color System: RGBL color mixing, 8/16 bit
- CTO Range: 2300K – 8500K
- Beam Angle: 20°
- Included Diffuser Angle: 40°
- Battery Life: Up to 16 hours
- Battery Saving Mode Runtime: Up to 40 hours
- Charging Time: 4.5 hours
- Battery Saving Modes: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- Preset Color Programs: 73
- Auto/Fade Built-In Programs: 72
- Dimmer: Electronic
- Dimming Modes: 4
- Shutter/Strobe: Electronic
- Strobe Rate: 0–25 Hz
- Control Protocols: Wireless DMX, IR remote
- Wireless DMX: CRMX by LumenRadio
- DMX Personalities: HSV, HSI, 3, 4, 6, 11, and 16-channel modes
- Display: OLED graphical display
- Fixture Construction: Die-cast aluminum and steel structure
- External Finish: Black
- IP Rating: IP65
- Cooling: Fanless
- Certifications / Qualifications: RoHS, CE, FCC, cETL pending
- Operating Temperature: -10° C to 60° C (14° F to 140° F)
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1
- Power Cable: US Edison UL-listed plug to Seetronic Powercon IP65 True1
- Power Cable Length: 4.1 ft (1.25 m)
- Data Connectors: Seetronic 5-pin XLR input/output
- Input Voltage: 100V – 240V AC, 50/60 Hz
- Power Consumption: 120W
- PWM: 1.5 kHz
- Battery Voltage: 18.5V
- Battery Capacity: 15600mAh, 288.6Wh
- Charger: 21V, 3.5A
- Rechargeable Battery Type: UL-listed lithium ion
- Power Linking at 110V / 20A Circuit: Up to 18 units
- Power Linking at 208V / 20A Circuit: Up to 30 units
- Power Linking at 230V / 20A Circuit: Up to 40 units
- Item Dimensions: 38.6 x 20.9 x 22 in
- Item Weight: 145 lb
- UPC: 618528600017

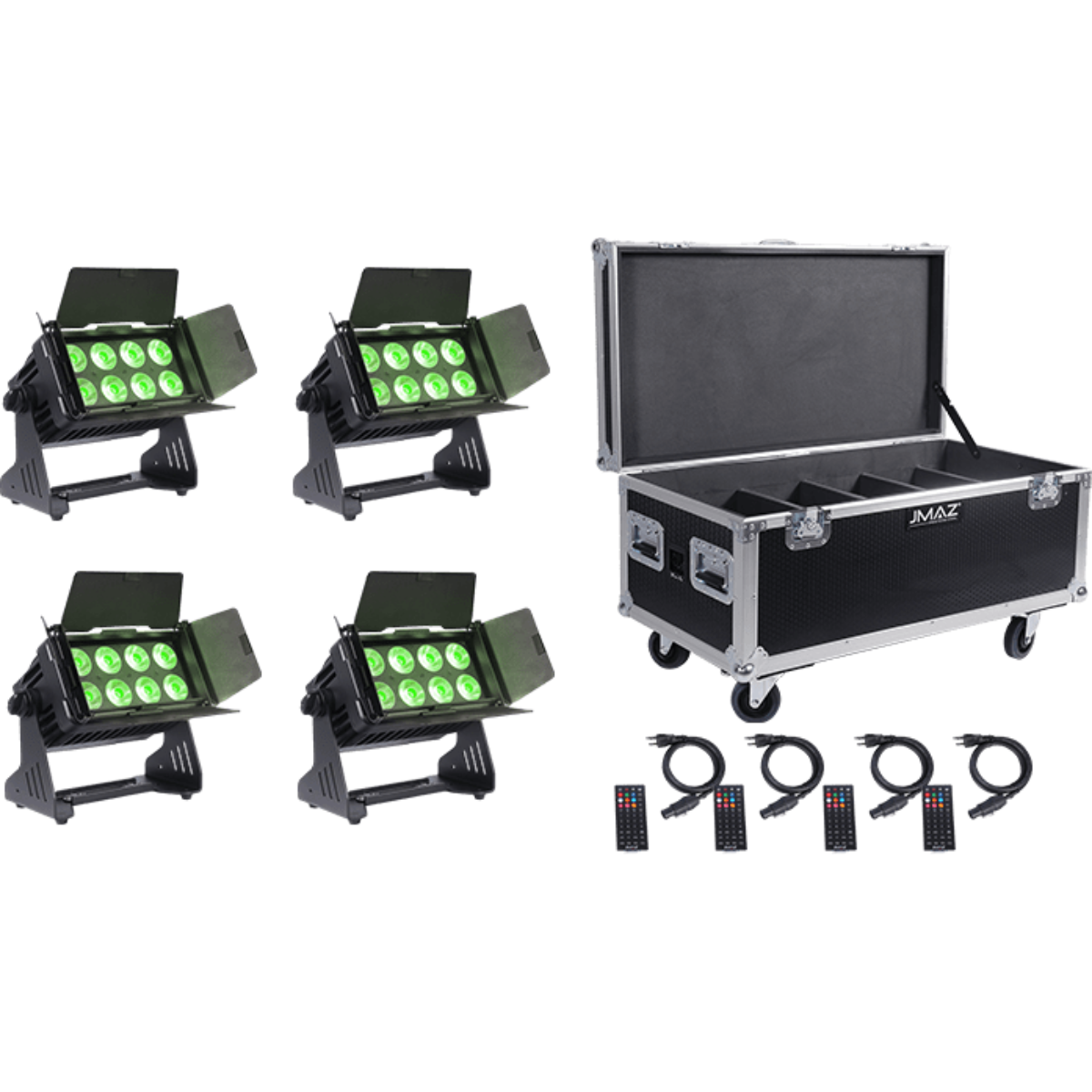

What's In The Box
- 1x Charging road case
- 4x JMAZ Electro Panel W8 fixtures
- 4x Powercon IP65 True1 power cables
- 4x IR remotes
- 4x Barn doors
- 4x 40° diffusers
- 1x Quick start guide
- 1x User manual
