Battery-Powered LED Panel Light Kit
JMAZ Electro Panel W18 4Pack with Charging Road Case is a complete battery-powered outdoor LED panel lighting package designed for event professionals, production companies, rental houses, houses of worship, venues, and integrators. With four RGB+Lime Electro Panel W18 fixtures, CRMX wireless DMX, IP65-rated construction, included 40° diffusers, barn doors, IR remotes, and a charging road case, this kit delivers flexible color lighting with simplified storage, charging, and transport.
JMAZ Electro Panel W18 4Pack with Charging Road Case Competitive Differences
- Complete turnkey kit includes four Electro Panel W18 fixtures and a professional charging road case
- Integrated charging case allows all four fixtures to recharge simultaneously while stored in the case
- 216W RGB+Lime LED engine per fixture delivers vibrant color mixing with CTO control from 2300K to 8500K
- CRMX by LumenRadio wireless DMX, IR remote control, and multiple DMX channel modes support flexible operation
- IP65-rated, fanless fixtures with die-cast aluminum and steel construction are built for outdoor event use
JMAZ Electro Panel W18 4Pack with Charging Road Case Description
The JMAZ Electro Panel W18 4Pack with Charging Road Case is designed for lighting professionals who need a powerful wireless wash and uplighting package that can be deployed quickly and transported safely. Each Electro Panel W18 fixture features 18 x 12W RGB+Lime LEDs for a total 216W light engine, giving users saturated color output, smooth color mixing, and adjustable white tones for corporate events, stages, architecture, ceremonies, and temporary installations.
The included charging road case turns the package into a streamlined production solution. All four fixtures can be stored, protected, transported, and charged together, helping reduce setup time, cable management, and inventory handling for rental houses, mobile production crews, and event teams.
For control, the Electro Panel W18 supports CRMX by LumenRadio wireless DMX, IR remote control, standalone color mixing, preset color temperatures, built-in color programs, auto/fade programs, and multiple DMX personality modes. The OLED graphical display provides onboard menu access, while dimming modes, electronic strobe, and favorite color customization help adapt the fixtures to a wide range of show environments.
Built with IP65-rated protection, fanless cooling, die-cast aluminum and steel construction, Seetronic Powercon IP65 True1 power connections, and Seetronic 5-pin XLR data connections, this kit is ready for demanding professional use indoors or outdoors. With up to 11 hours of battery life, up to 40 hours in battery saving mode, and fast 2.5-hour charging, the JMAZ Electro Panel W18 4Pack is ideal for events where fast turnaround and wireless operation matter.
Electro Panel W18 4Pack Features
- Complete kit with four Electro Panel W18 fixtures and charging road case
- Integrated charging system charges all four fixtures while stored in the case
- 216W LED engine per fixture using 18 x 12W RGB+Lime LEDs
- RGBL color mixing with 8-bit and 16-bit control
- CTO control from 2300K to 8500K
- 20° advanced optics beam angle
- 40° diffuser included for wider wash coverage
- Up to 11 hours of battery life
- Up to 40 hours in battery saving mode
- 2.5-hour charging time
- Selectable battery saving modes from 20% to 100%
- 73 preset color programs
- 72 auto/fade built-in programs
- Standalone color mixing
- Electronic dimmer with 4 dimming modes
- Electronic shutter and strobe effects
- Strobe rate up to 25 Hz
- Four favorite color customizations triggered by DMX or IR remote
- CRMX by LumenRadio wireless DMX
- IR remote control operation
- HSV, HSI, 3, 4, 6, 11, and 16-channel DMX modes
- OLED graphical display
- IP65-rated fixture design
- Fanless cooling for quiet operation
- Die-cast aluminum and steel structure
- Black external finish
- Seetronic Powercon IP65 True1 power input and output
- Seetronic 5-pin XLR input and output data connectors
- Power linking supports daisy-chaining multiple fixtures on compatible circuits
Electro Panel W18 4Pack Specifications
- Product Type: Battery-powered outdoor LED panel light kit
- Included Fixtures: 4x Electro Panel W18
- Charging Case: Included
- Light Source Per Fixture: 216W, 18 x 12W RGB+Lime LEDs
- LED Life Expectancy: 50,000 hours
- Color System: RGBL color mixing, 8/16 bit
- CTO Range: 2300K – 8500K
- Beam Angle: 20°
- Included Diffuser Angle: 40°
- Battery Life: Up to 11 hours
- Battery Saving Mode Runtime: Up to 40 hours
- Charging Time: 2.5 hours
- Battery Saving Modes: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- Preset Color Programs: 73
- Auto/Fade Built-In Programs: 72
- Dimmer: Electronic
- Dimming Modes: 4
- Shutter/Strobe: Electronic
- Strobe Rate: 0–25 Hz
- Control Protocols: Wireless DMX, IR remote
- Wireless DMX: CRMX by LumenRadio
- DMX Personalities: HSV, HSI, 3, 4, 6, 11, and 16-channel modes
- Display: OLED graphical display
- Fixture Construction: Die-cast aluminum and steel structure
- External Finish: Black
- IP Rating: IP65
- Cooling: Fanless
- Certifications / Qualifications: RoHS, CE, FCC, cETL pending
- Operating Temperature: -10° C to 60° C (14° F to 140° F)
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1
- Power Cable: US Edison UL-listed plug to Seetronic Powercon IP65 True1
- Power Cable Length: 4.1 ft (1.25 m)
- Data Connectors: Seetronic 5-pin XLR input/output
- Input Voltage: 100V – 240V AC, 50/60 Hz
- Power Consumption: 216W
- PWM: 1.5 kHz
- Battery Voltage: 29.6V, 3A
- Battery Capacity: 13000mAh, 384.8Wh
- Charger: 29.4V, 5.5A
- Rechargeable Battery Type: UL-listed lithium ion
- Power Linking at 110V / 20A Circuit: Up to 8 units
- Power Linking at 208V / 20A Circuit: Up to 14 units
- Power Linking at 230V / 20A Circuit: Up to 17 units
- UPC: 618528600024

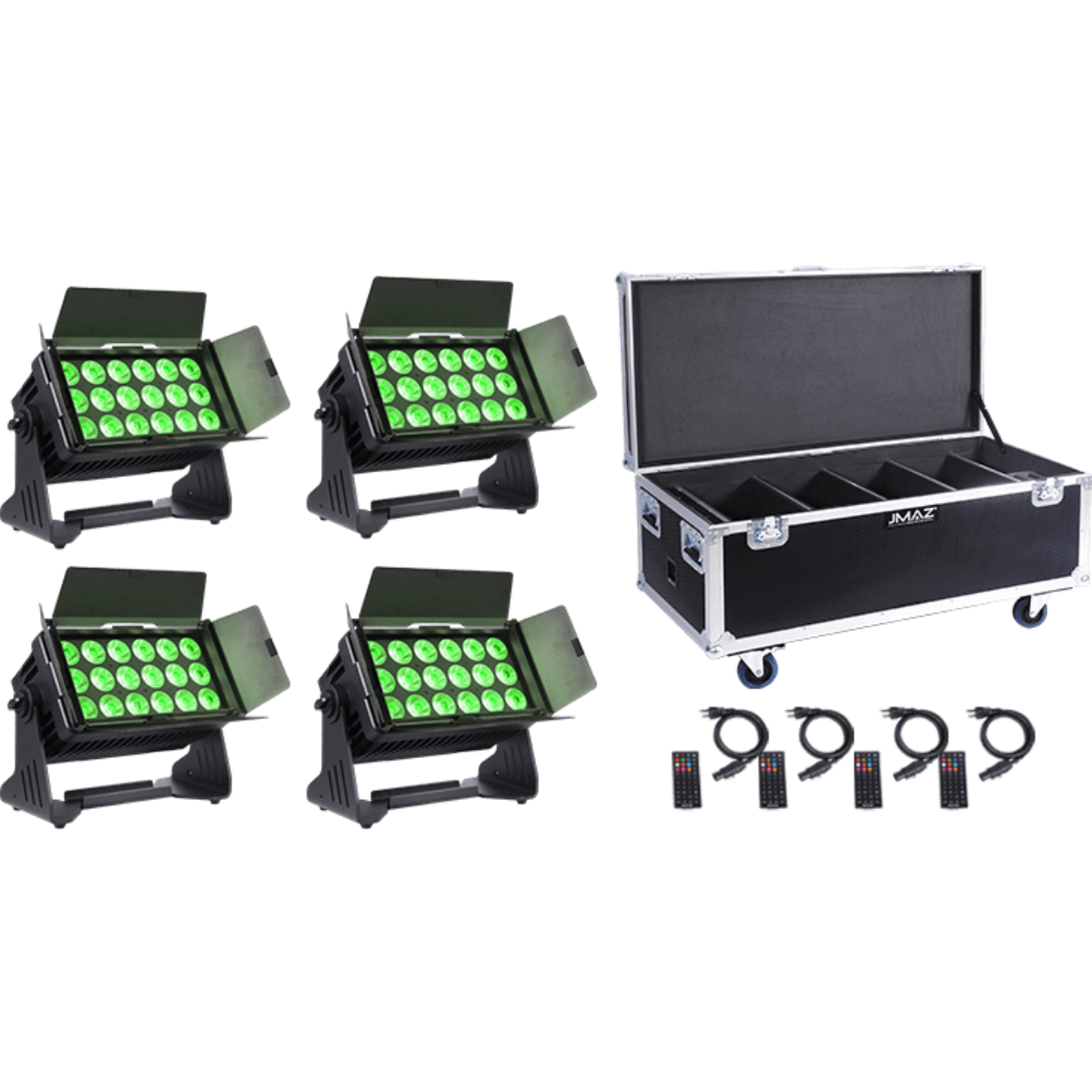

What's In The Box
- 1x Charging case
- 4x JMAZ Electro Panel W18 fixtures
- 4x Powercon IP65 True1 power cables
- 4x IR remotes
- 4x Barn doors
- 4x 40° diffusers
- 1x Quick start guide
- 1x User manual
